📋 Basic Information
Usage
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Machinery Industry
Processing Service
Punching, Bending, Decoiling
Product Name

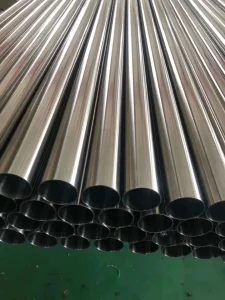

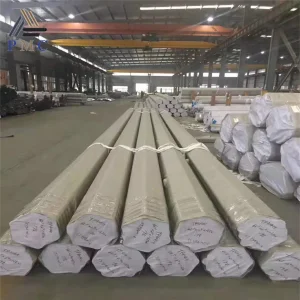

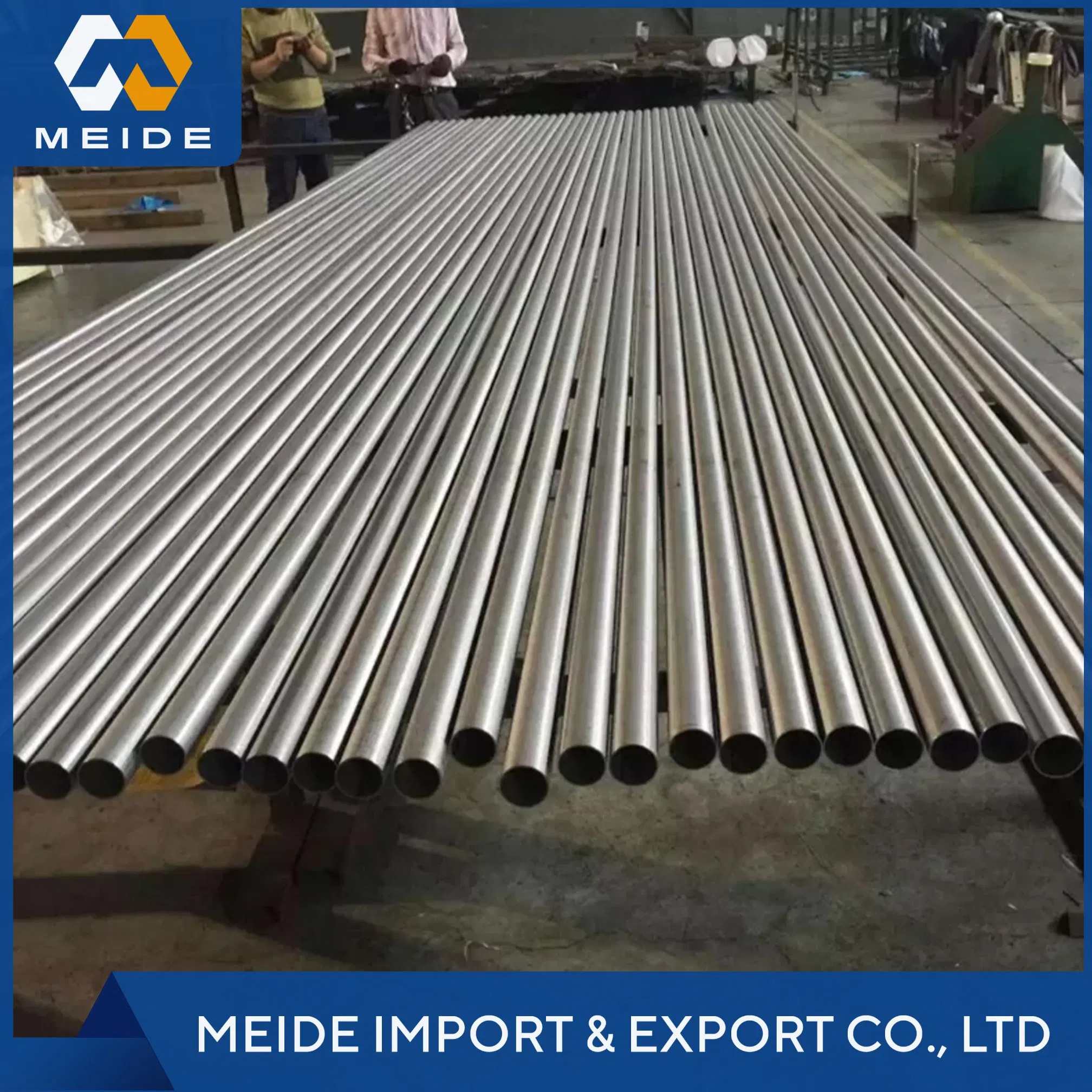

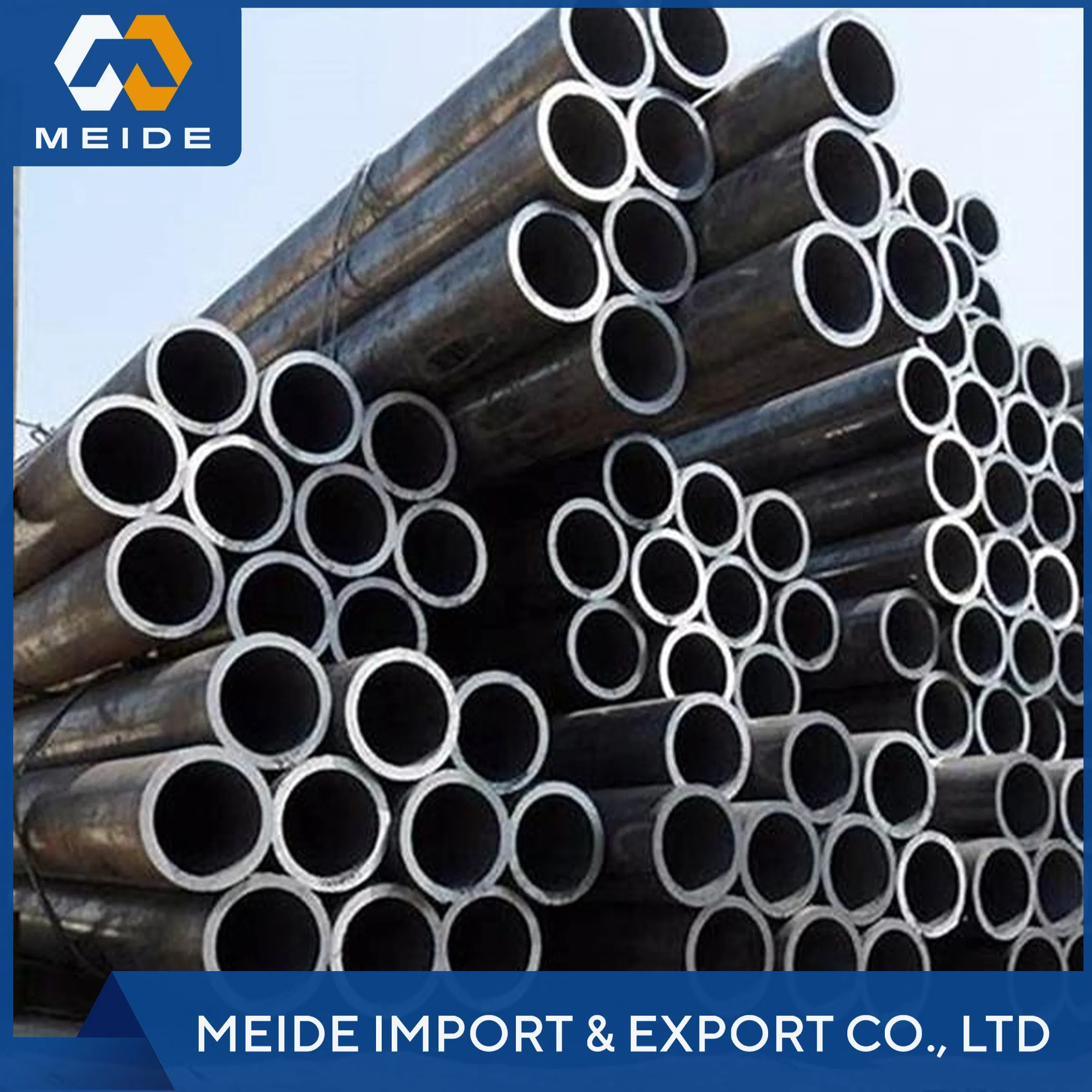

Seamless Precision Steel Tube/Pipe
Standard
ASTM GB JIS DIN En
📍 Product Description
Smaller outside diameter. High precision can be used for small batch production. The cold-drawn finished product has high precision and good surface quality. The cross area of steel pipe is more complex. The performance of steel pipe is superior and the metal is dense.
Manufacturing Method:
According to different production methods, it can be divided into hot rolled pipe, cold rolled pipe, cold drawn pipe, extruded pipe, etc. Hot-rolled seamless pipe is generally produced on the automatic pipe rolling mill. solid tube blank is cut to the required length, centered on the end face of the piercing end, then sent to the heating furnace for heating and perforated on the piercing machine. In order to obtain seamless pipes with smaller size and better quality, cold rolling, cold drawing or both methods must be adopted.
💻 Chemical Composition (%)
| Material | C | Si | Mn | P | S | Cr | Ni | Mo |
| ASTM 4119 GB 12CrMo | 0.08-0.15 | 0.17-0.37 | 0.4-0.7 | 0.035 | 0.035 | 0.4-0.7 | 0.3 | 0.4-0.55 |
| JIS SCM415 GB 15CrMo | 0.12-0.18 | 0.17-0.37 | 0.4-0.7 | 0.035 | 0.035 | 0.8-1.1 | 0.3 | 0.4-0.55 |
| ASTM 4130 GB 30CrMo | 0.26-0.34 | 0.17-0.37 | 0.4-0.7 | 0.035 | 0.035 | 0.8-1.1 | 0.3 | 0.15-0.25 |
📈 Mechanical Property
| Material | Sample d(mm) | Tensile (Mpa) | Yield (Mpa) | Elongation % | Hardness HBW |
| GB 12CrMo | 30 | ≥410 | ≥265 | ≥24 | ≤179 |
| GB 20CrMo | 15 | ≥885 | ≥685 | ≥12 | ≤197 |
| GB 42CrMo | 25 | ≥1080 | ≥930 | ≥12 | ≤217 |
🔥 Heat Treatment Process
Annealing: Heating to proper temperature and slow cooling to reach equilibrium state for better service properties.
Normalizing: Air cooling after heating to improve cutting performance of materials.
Quenching: Rapid cooling in water or oil to increase hardness.
Tempering: Keeping quenched pipes at an appropriate temperature to reduce brittleness.
📏 Product Specification
Specification: Outer diameter of hot-rolled pipe is 32~630mm. Wall thickness 2.5~75mm. Outer diameter of cold rolled (cold drawn) pipe is 5~200mm. Wall thickness 2.5~12mm. The internal and external surfaces of steel pipes shall be free of cracks, folds, folds, delamination, hairlines and scabs.
🏭 Product Application
Seamless pipes are widely used for conveying fluid or structural parts. Supply categories include chemical composition and mechanical properties, or hydraulic test results. Special purposes include boiler seamless pipes, geological seamless pipes, and petroleum seamless pipes.
❓ FAQ
What is a seamless steel pipe?
Seamless steel pipes are perforated from whole round steel, and steel pipes without welds on the surface are called seamless steel pipes.
What is the difference between ERW and seamless steel pipe?
Seamless pipe is manufactured by extruding the metal to the desired length; ERW pipe has a welded joint in its cross-section, while seamless pipe does not have any joint in its cross-section throughout its length.
What is seamless steel pipe used for?
Seamless steel pipe is regularly used in the transportation of fluids such as water, natural gas, waste, and air.
What delivery terms do you accept?
We accept various delivery terms including FOB, CFR, CIF, and EXW.
Can we get samples?
Yes, you can get available samples from our stock. Samples are free, but customers need to cover the freight cost.
How can we get a price quote?
We need the product name, standard, material grade, dimensions, and quantity to provide an accurate quote.
