Flowtera Pipe
1 / 5

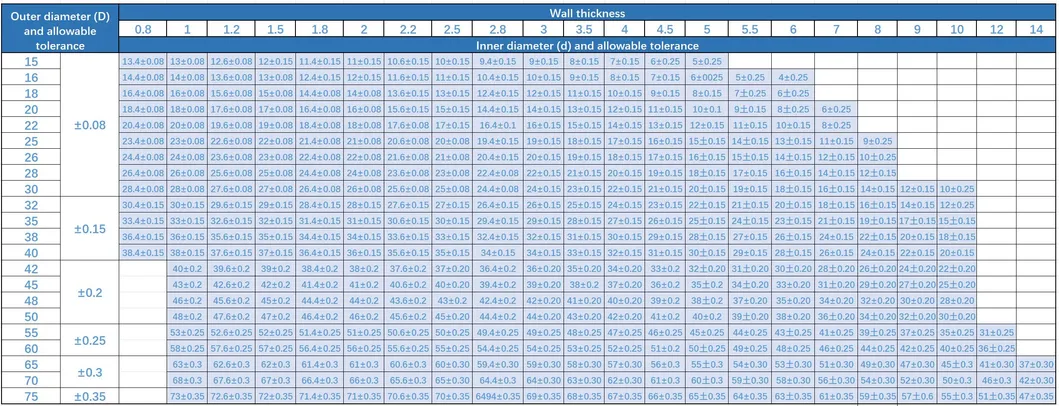

| Model NO. | OD 15-75mm |
| Type | Seamless |
| Technique | Cold Drawn |
| Material | Alloy Steel |
| Usage | Hydraulic/Automobile Pipe, Machinery Industry |
| Section Shape | Round |
| Standard | IATF16949 Yes |
| HS Code | 7304319000 |
Experience rapid molding speeds and impressive output with no harm to the coating. These pipes can be crafted into diverse cross-sectional forms to perfectly meet varied usage requirements. Cold rolling induces notable plastic deformation in the steel, significantly boosting its yield point.

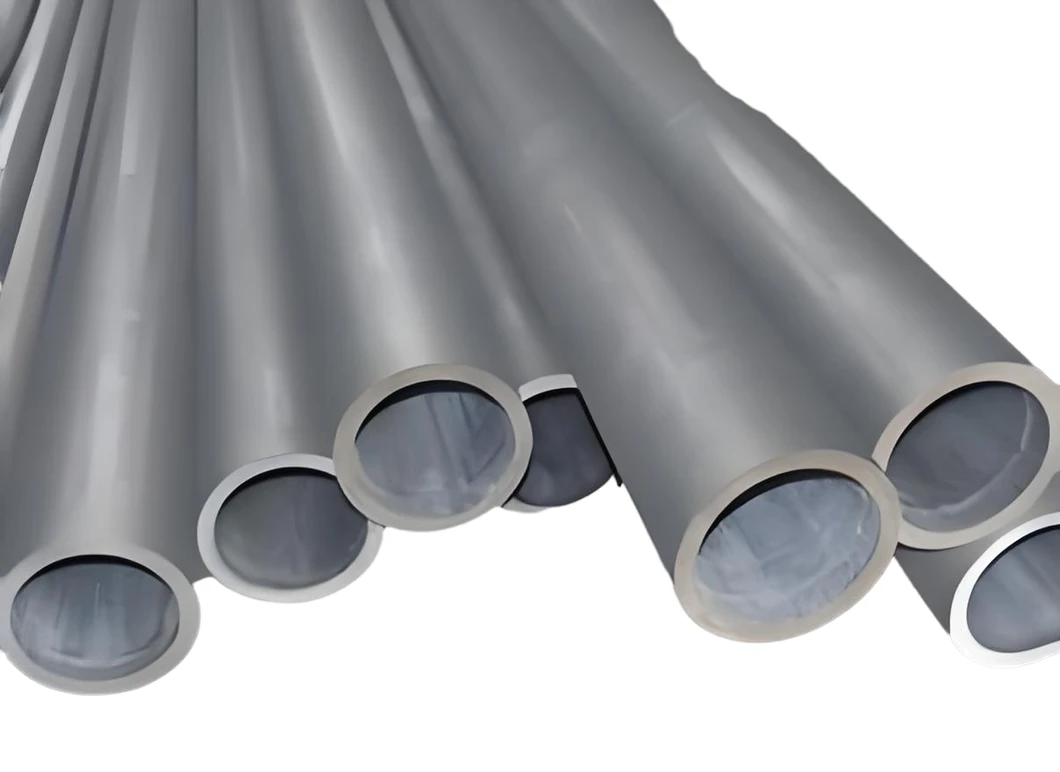

Precision cold drawn pipes have the characteristics of high precision, high smoothness, good inner wall cleanliness, steel pipes can withstand high pressure without leakage, cold bending without deformation, expansion and flattening without cracks.

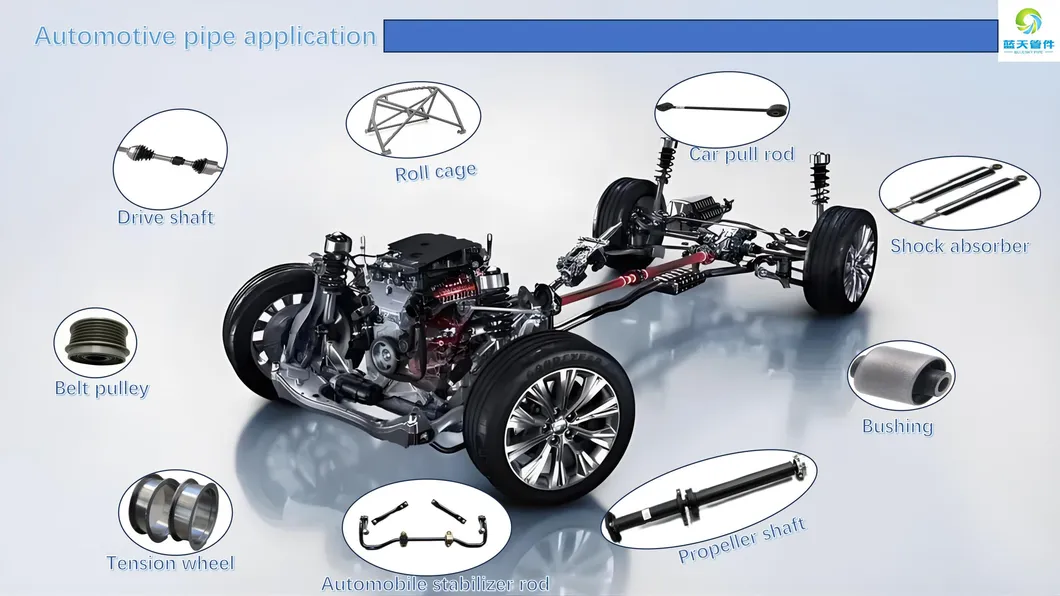

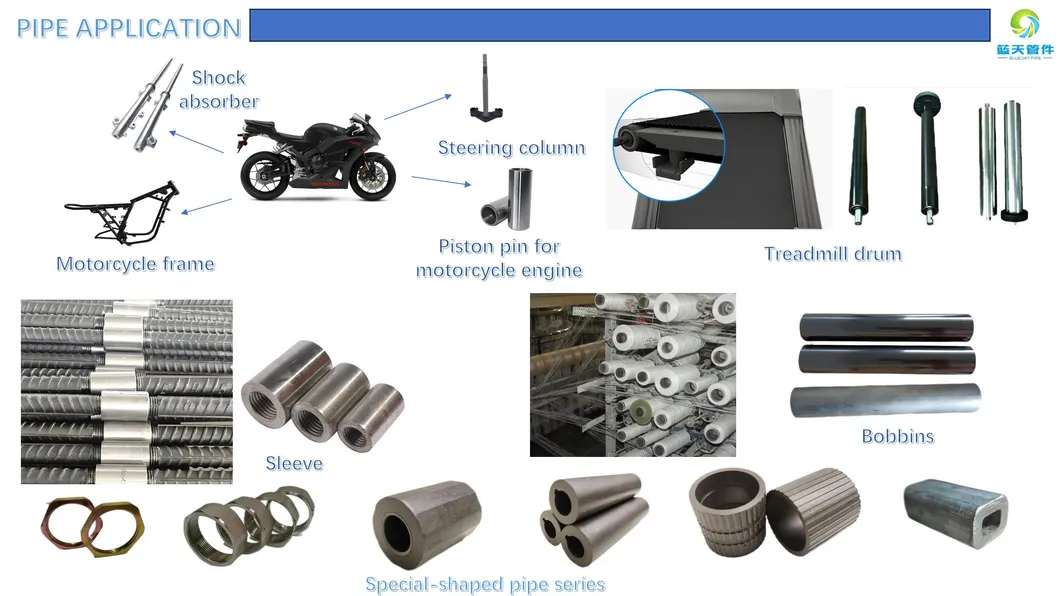

Extensive application across automotive parts, motorcycle components, and hydraulic engineering machinery.
| Grade | C | Si | Mn | P | S | Cr | Mo |
|---|---|---|---|---|---|---|---|
| SMn420TK | 0.17-0.23 | 0.15-0.35 | 1.20-1.50 | 0.030 max | 0.030 max | 0.35 max | / |
| SCM415TK | 0.13-0.18 | 0.15-0.35 | 0.60-0.90 | 0.030 max | 0.030 max | 0.90-1.20 | 0.15-0.25 |
| SCM440TK | 0.38-0.43 | 0.15-0.35 | 0.60-0.90 | 0.030 max | 0.030 max | 0.90-1.20 | 0.15-0.30 |
| Grade | Rel (Mpa) | Rm (Mpa) | A (%) |
|---|---|---|---|
| SCM415 | ≥295 | ≥440 | ≥22 |
| SCM420 | ≥685 | ≥885 | ≥12 |
| SCM440 | ≥930 | ≥1080 | ≥12 |
Available States: BK (+C), BKW (+LC), BKS (+SR), GBK (+A), NBK (+N)

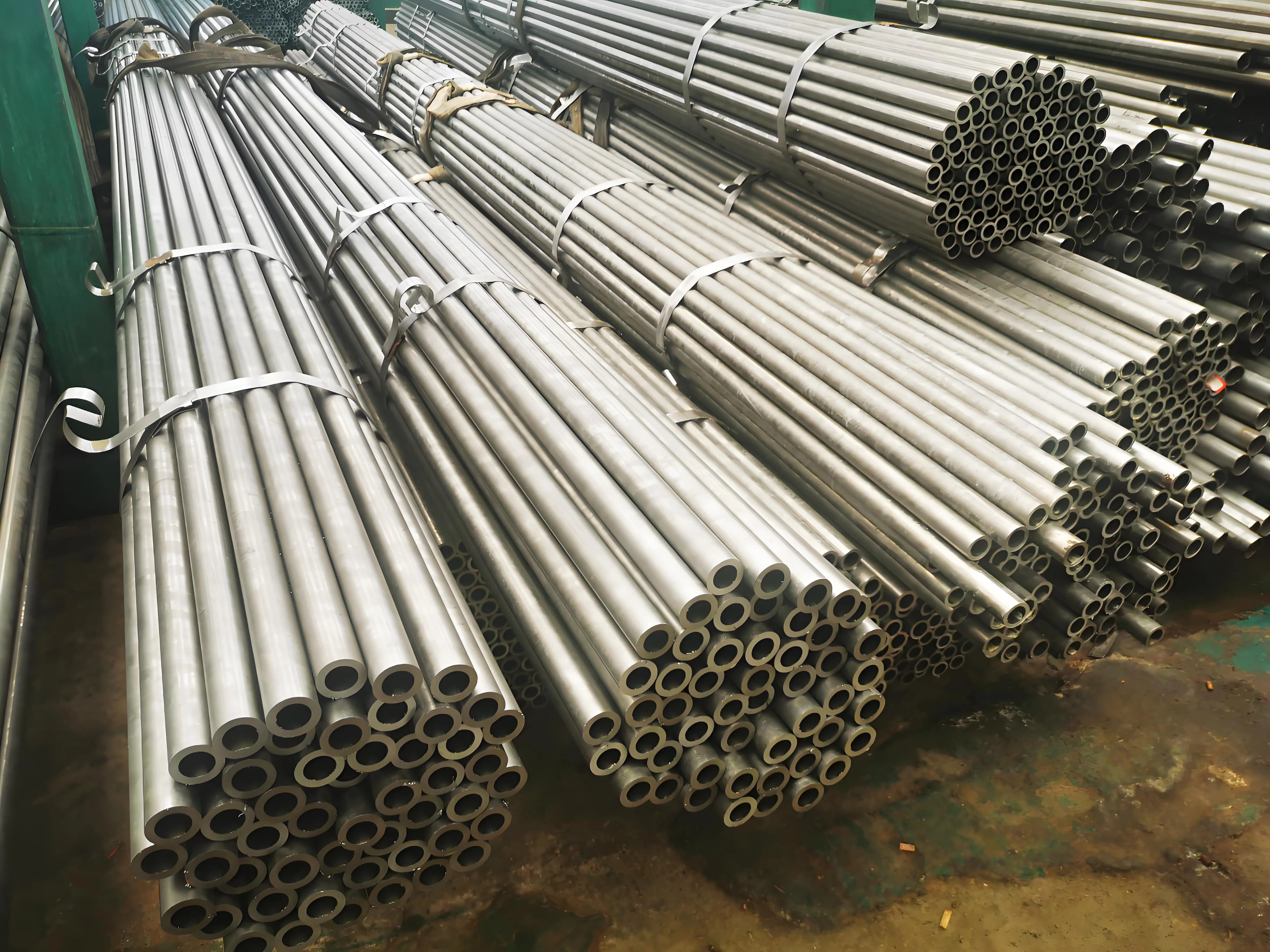

Packing: Woven bag / Wooden crate / Bundle Packing as per request.
Delivery: Normally 20-30 working days.
