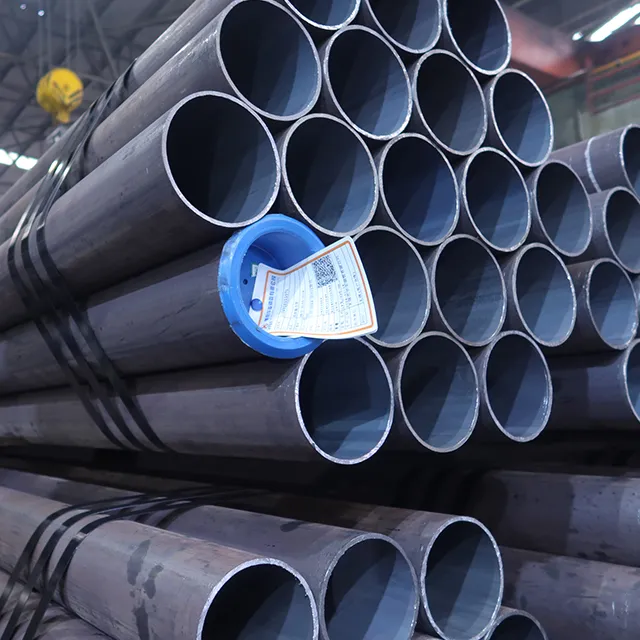

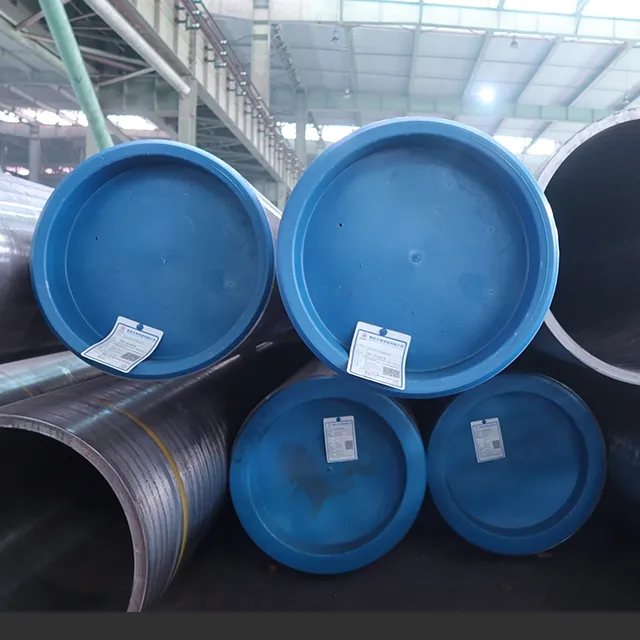

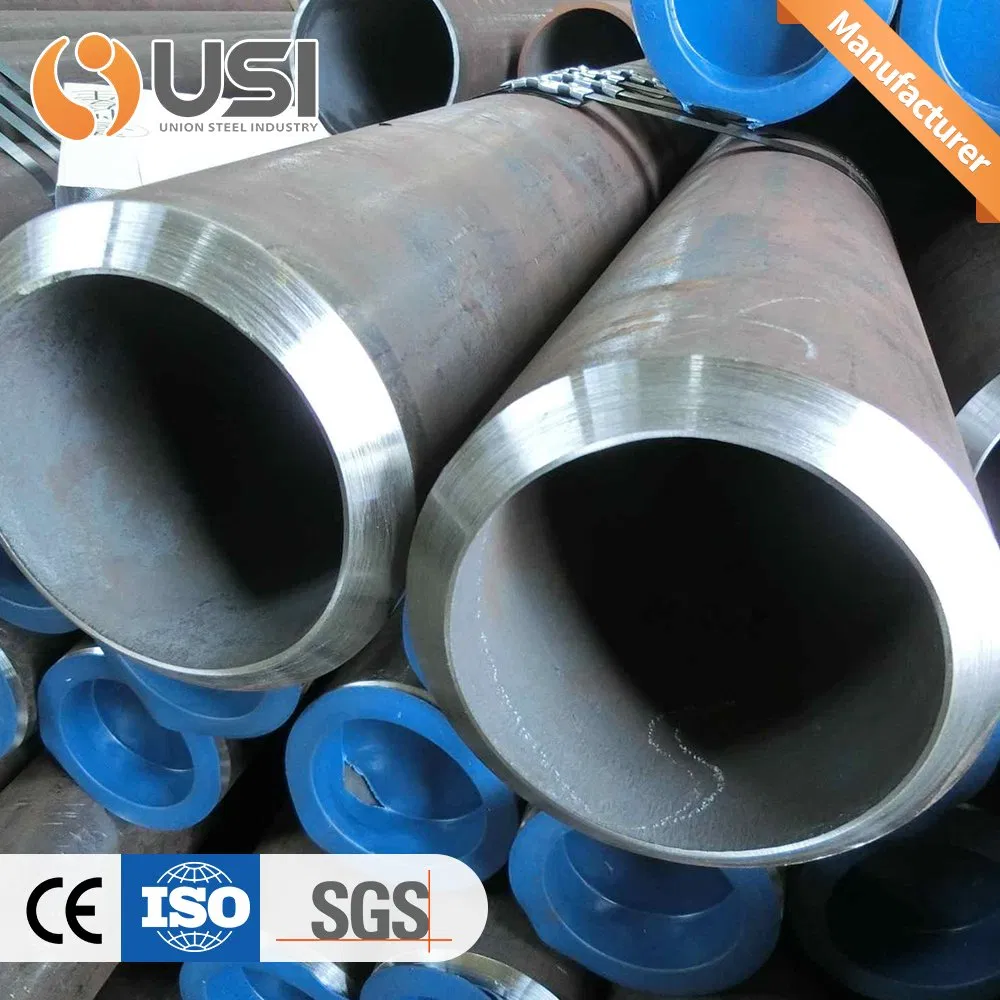

SEAMLESS STEEL PIPE: Seamless carbon steel pipes are made of steel ingots or solid tube blanks perforated into capillary tubes and then made by hot rolling, cold rolling, or cold drawing, which have excellent durability and corrosion resistance characteristics.
Common Uses:
| NOMINAL PIPE SIZE | OD (mm) | WALL THICKNESS (mm) | |||||
|---|---|---|---|---|---|---|---|
| DN | NB(inch) | ASME | STD | SCH40 | SCH80 | SCH160 | XXS |
| 15 | 1/2" | 21.3 | 2.77 | 2.77 | 3.73 | 4.78 | 7.47 |
| 25 | 1" | 33.4 | 3.38 | 3.38 | 4.55 | 6.35 | 9.09 |
| 50 | 2" | 60.3 | 3.91 | 3.91 | 5.54 | 8.74 | 11.07 |
| 100 | 4" | 114.3 | 6.02 | 6.02 | 8.56 | 13.49 | 17.12 |
| 200 | 8" | 219.1 | 8.18 | 8.18 | 12.7 | 23.01 | 22.23 |

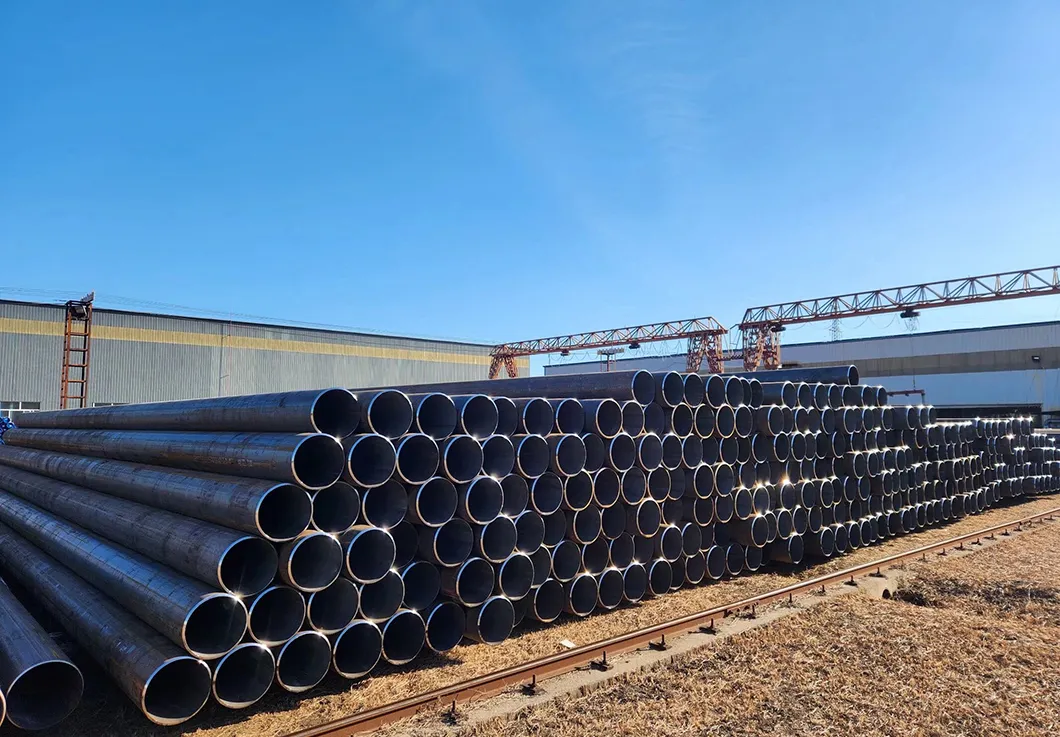

BASIC INFORMATION: Out Diameter: 1/8 - 36inch; Wall Thickness: 1.25 - 50mm.

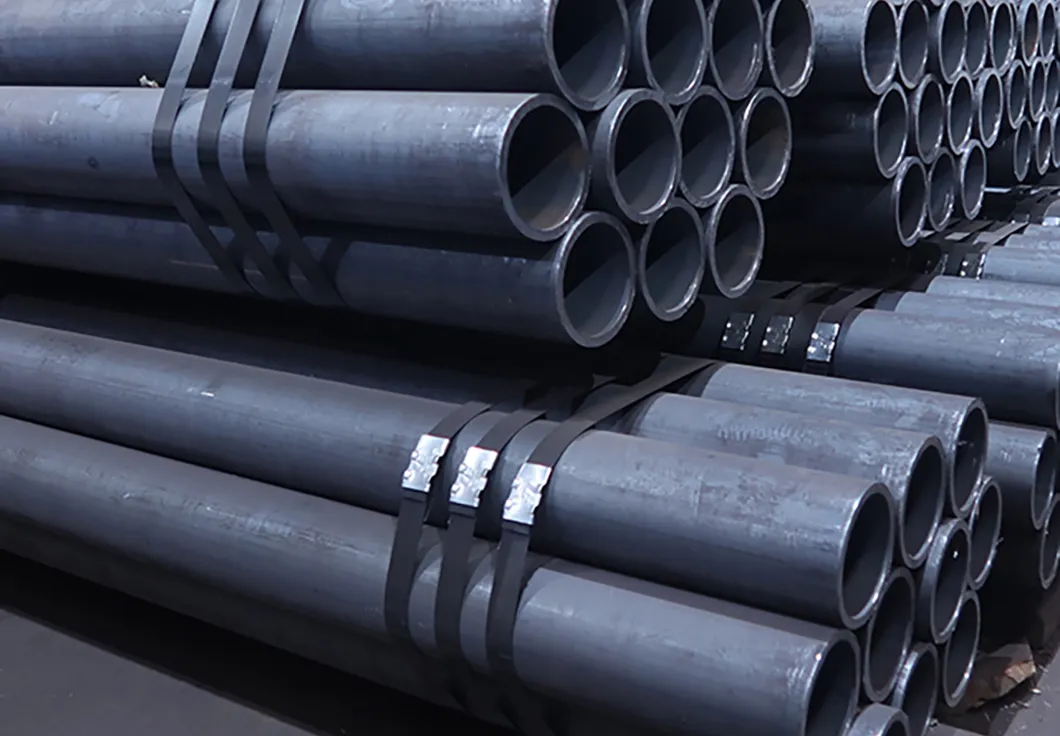

STEEL GRADE: ASTM A53/A106 GR B, ASME A500 GR.B/C.

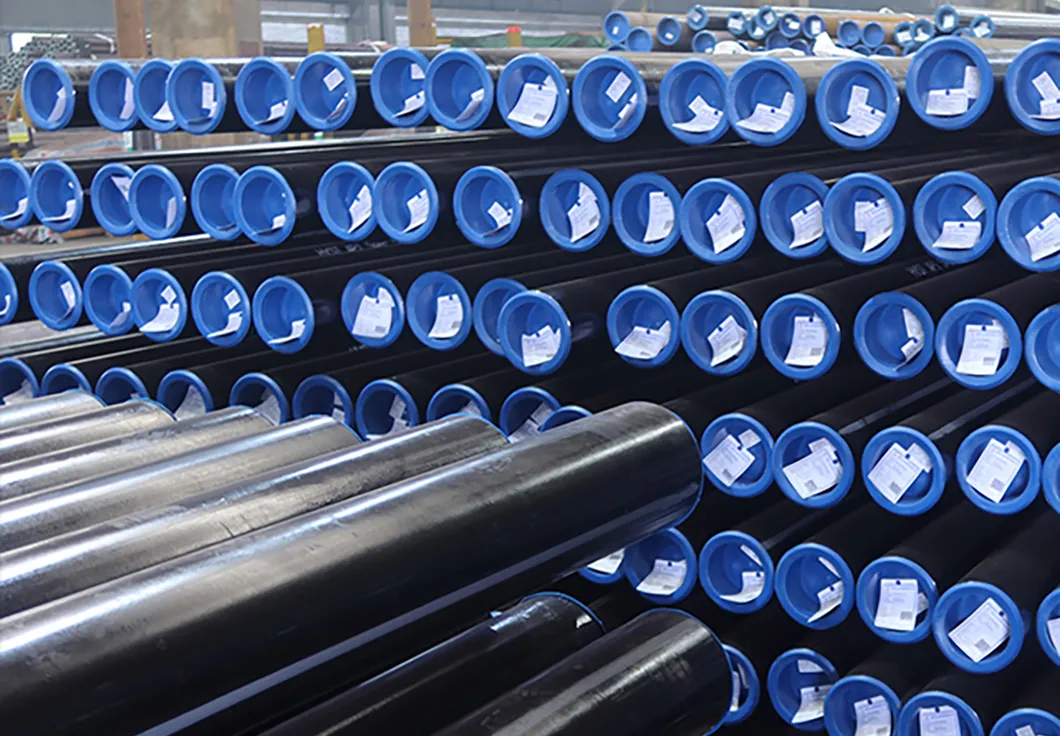

PRODUCTION PROCESS: Hot Rolling and Cold Drawing manufacturing methods.
