Carbon Steel Seamless Pipe Uses:
| NOMINAL PIPE SIZE | OD (mm) | NOMINAL WALL THICKNESS | ||||
|---|---|---|---|---|---|---|
| DN | NB(inch) | ASME | SCH10 | STD | SCH40 | XS |
| 15 | 1/2" | 21.3 | 2.11 | 2.77 | 2.77 | 3.73 |
| 20 | 3/4" | 26.7 | 2.11 | 2.87 | 2.87 | 3.91 |
| 25 | 1" | 33.4 | 2.77 | 3.38 | 3.38 | 4.55 |
| 50 | 2" | 60.3 | 2.77 | 3.91 | 3.91 | 5.54 |
| 100 | 4" | 114.3 | 3.05 | 6.02 | 6.02 | 8.56 |
| Pipe types | Pipe sizes(mm) | Tolerances |
|---|---|---|
| Hot rolled | OD<50 | ±0.50mm |
| OD≥50 | ±1% | |
| Cold drawn | OD 10~30 | ±0.40mm |
| OD>50 | ±1% |
| STANDARD | DESCRIPTION |
|---|---|
| ASTM A53 Gr.B | Black and hot-dipped zinc-coated steel pipes welded and seamless |
| ASTM A106 Gr.B | Seamless carbon steel for high temperature service |
| ASTM SA192 | Seamless carbon steel boiler tubes for high pressure |
| API Spec 5L | Seamless steel pipe for line pipe |
| DIN 17175 | Seamless steel tube for elevated temperature |

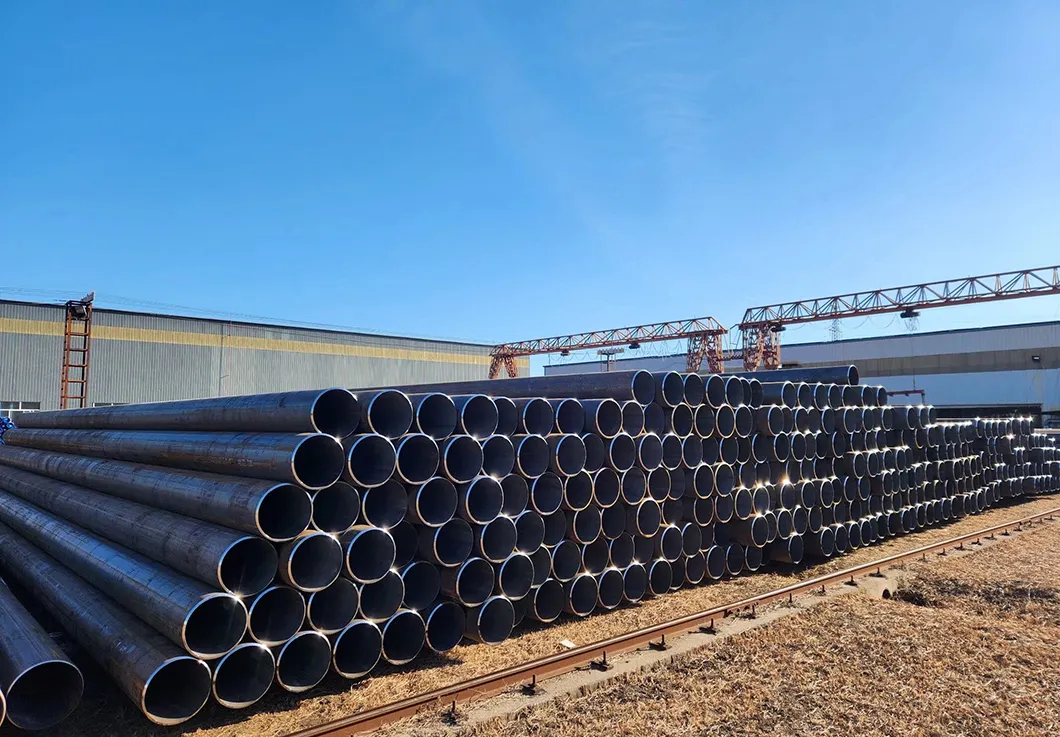

BASIC INFORMATION
Standard: ASTM A106/A53/A500/ASME SA106
OD: 1/8 - 36inch

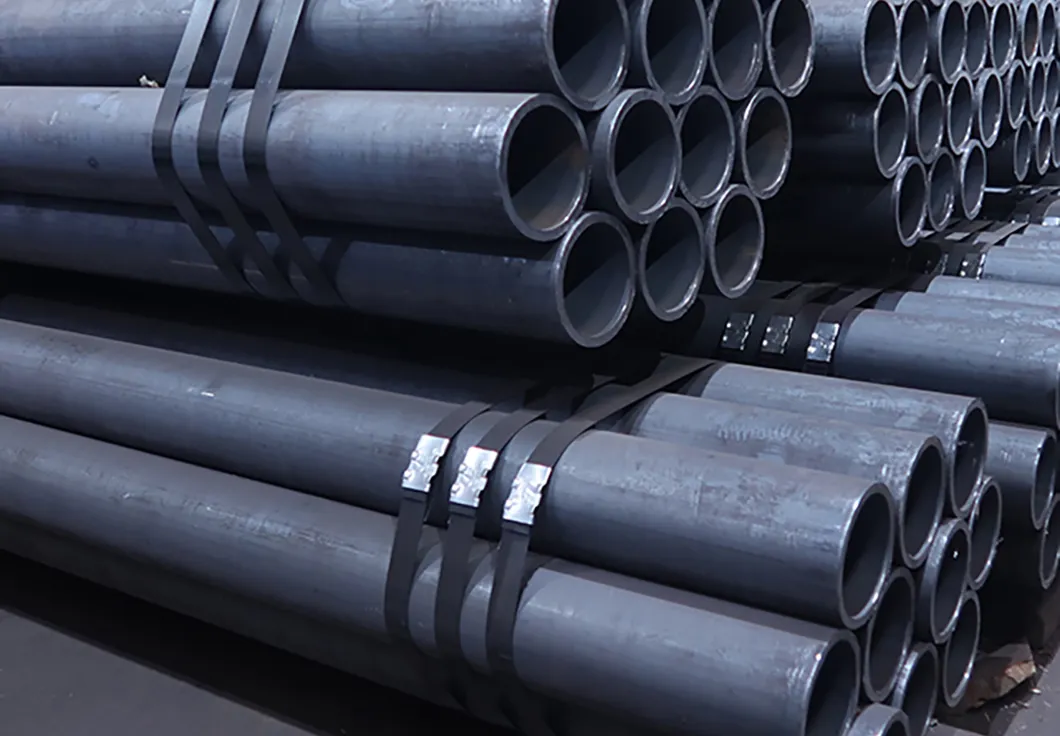

STEEL GRADE
GR A, GR B, GR C
Delivery: Annealed, Polished, Cold Drawn

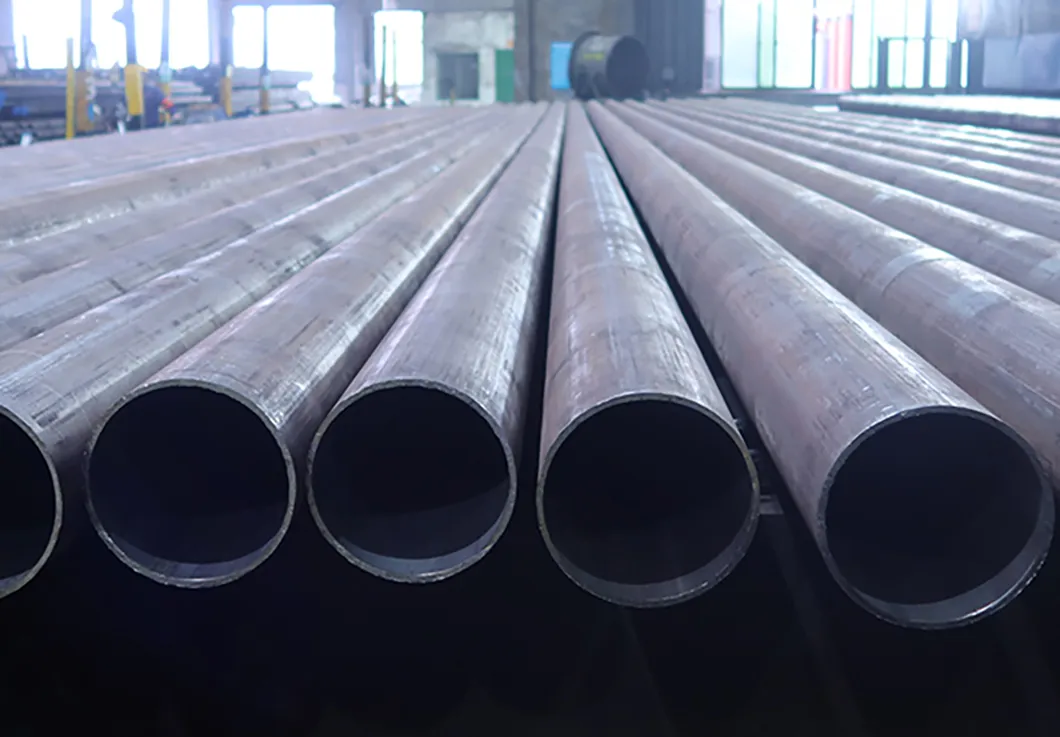

TEST REQUIRED
Chemical Analysis, Mechanical Test, NDT Test, Hydrostatic Test

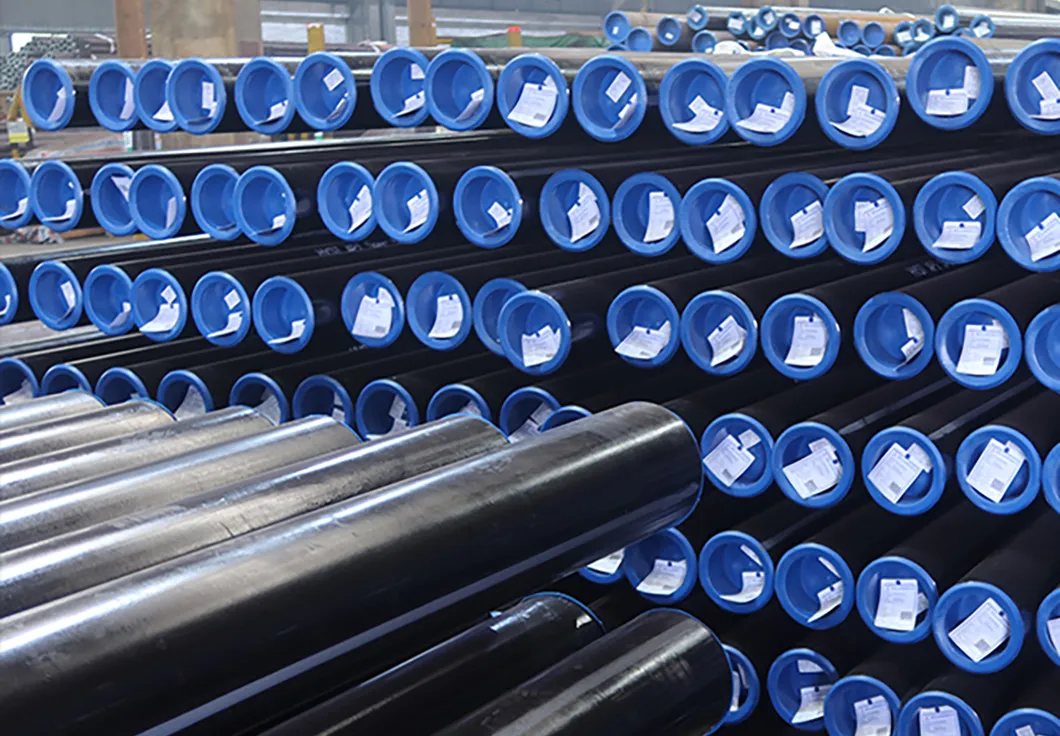

PRODUCTION PROCESS
Heating - Piercing - Elongation - Straightening - NDT
